GIGA 3000

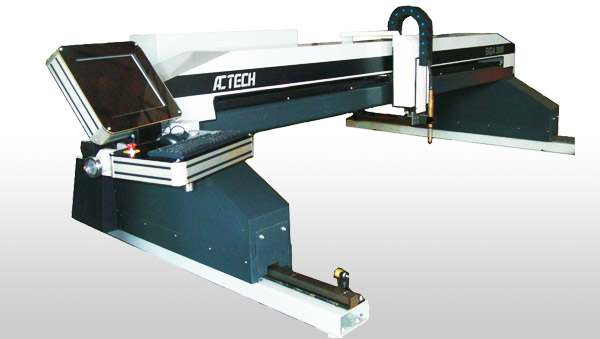

Gantry Design Cuting Machine

Features:

  • A high performance PC based CNC controller.
  • Dual Mitsubishi AC Servo Drive.
  • Intelligent Digital Height Control (IDHC).
  • Powerful and ease to use PC based CNC controller.

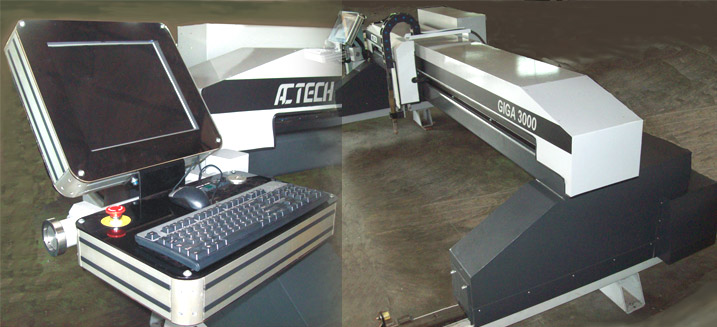

PC based CNC controller

GIGA 3000 Specifications
Machine Type Gantry Machine with one Plasma Holder
Longitudinal drive AC Servo/Oack 7 Pinion
Transverse drive AC Servo/Oack 7 Pinion
Effective Cutting Width 3000 mm
Effective Cutting Length As Custimer's choice
Maximum Travel Speed 1800 mm/min
Power SUpply 115/230 VAC 50/60 Hz 20A
Controller ACTECH PCD 1 PC Based CNC CONTROLLER (Window Based)
Screen Screen 17" LCD
CNC language Uses F.I.A- 274D G-Code
Jog Control Jog Control for 3 Axes
I-CAM Software Input Read CAD's DXF, PLT files
I-CAM Software Features Show Cutting paths, rapid moves and path directions
I-Cam Software Parameters Programmeble Kerf Width, Pluge Rate, Feedrate, Pierce Delay, Lead in/ out size.
PC based CNC controller Photo GalleryPC based CNC controller cutting sample
